Stage Panel 864

SKU:SP864

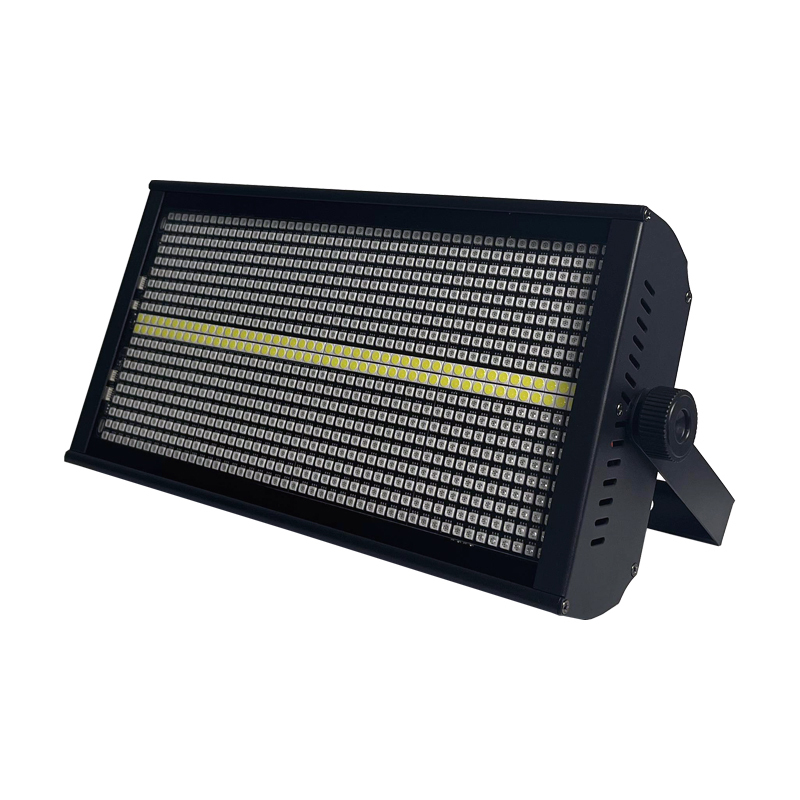

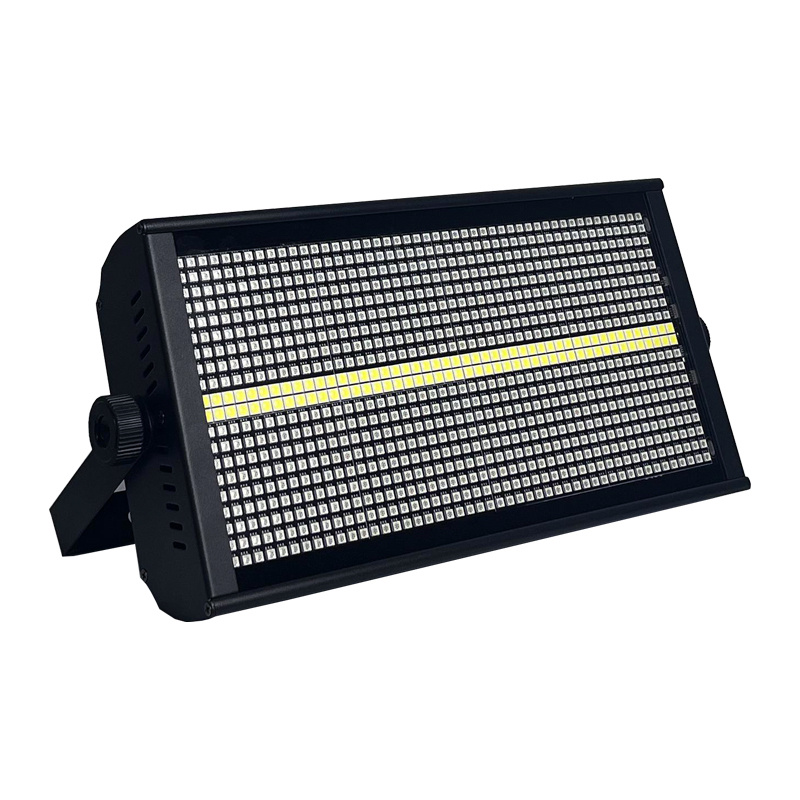

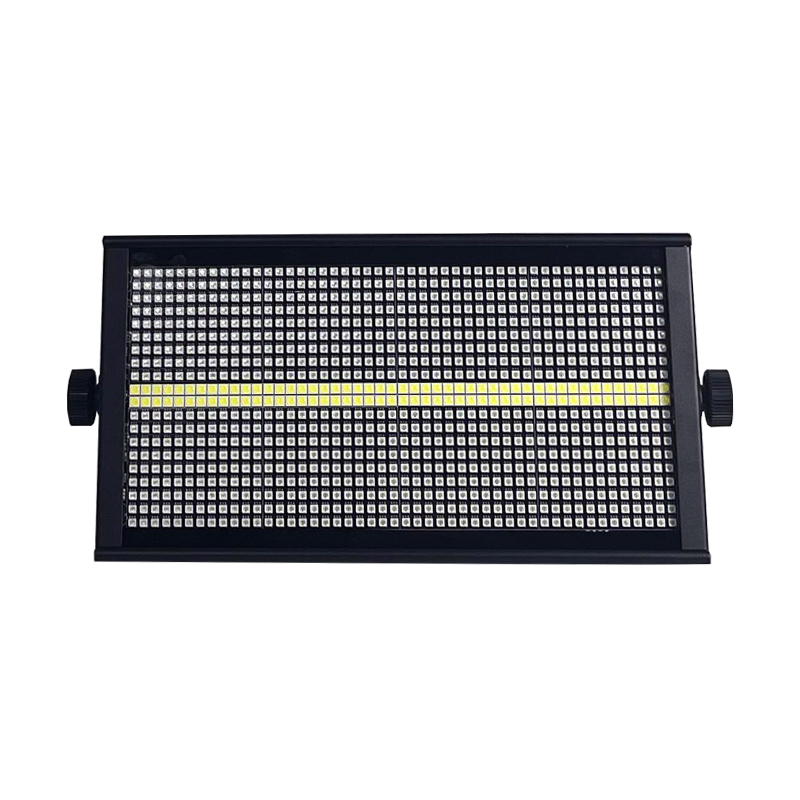

Stage Panel 864 RGB LED Wash+Strobe+Matrix Light Strobe Blinder
Main features:
  • Light source: 864 tri color LEDs (5050) +96 white strobe LEDs
  • 16 DMX controllable RGB sections + DMX controllable strobe section
  • Control: DMX512, automated programs, master/slave, sound activated mode, RDM
  • DMX Channel Modes: 4, 11, 32, 39CH
  • Stage Panel 864
  • Stage Panel 864
  • Stage Panel 864
  • Stage Panel 864
  • Stage Panel 864
Product Description
【All-in-One Stage Lighting Solution】
Combines RGB stage wash light and strobe functions in a single unit (STAGE PANEL 864 LED), eliminating the need for multiple separate fixtures—ideal for simplifying stage setups while delivering versatile lighting effects.​

【Dual-Light Source for Rich Visuals】
Equipped with 864 tri-color 5050 LEDs (for vibrant RGB washing) and 96 white strobe LEDs (for crisp, high-impact strobing), supporting stage washing, strobing, and visual matrix effects to enhance atmosphere for concerts, theaters, or events.​
Scalable for Any Stage Size

【Precise Segmented Control】
Features 16 DMX-controllable RGB sections and 1 DMX-controllable strobe section, enabling intricate, customized lighting designs (e.g., zone-specific color washing or synchronized strobe patterns) for professional-grade stage visuals.​

【Flexible Control Modes & Compatibility】
*Supports multiple operation modes
 DMX512 (for detailed programming), automated programs (standalone use), master/slave (synchronized multi-unit setups), and sound-activated mode (sound-triggered effects). RDM (Remote Device Management) compatibility allows integration with professional stage controllers like MA or Tiger Touch, meeting industry-standard workflow needs.​
*Versatile DMX Channel Options
Offers 4 DMX channel modes (4, 11, 32, 39) to balance simplicity and control—choose fewer channels for quick setups or more channels for granular adjustments to RGB, strobe, and dimming functions.​

【Designed to adapt to diverse venue needs】
use one unit to elevate small-to-medium stages, or combine 2+ units for larger stages, ensuring consistent, synchronized lighting coverage across different spaces.​

OPTICS
  • Light source: 864 × tri-color RGB LEDs (5050 SMD) + 96 × white strobe LEDs
  • Beam function: stage wash + strobe + pixel-matrix effects
  • 16 individually DMX-controllable RGB sections + 1 DMX-controllable strobe section
  • -32-bit 0–100 % linear dimmer
  • -Strobe frequency: 1 – 30 Hz
CONTROL
  • Protocols: DMX512, RDM (Remote Device Management)
  • DMX channel modes: 4 / 11 / 32 / 39 channels
  • Operation modes: auto programs, master/slave, sound-active
POWER CONSUMPTION
  • Supply voltage: 38 V
  • Rated power: 280 W
PHYSICAL
  • IP grade: IP20 (indoor use)
  • Weight: 7.94 lb (≈ 3.6 kg)
  • Dimensions: 9.45" × 17.72" × 2.95" (≈ 240 × 450 × 75 mm)
